Neptun BC1 – Sole & Boot Cleaner

Sole Cleaning

Wet Cleaning / Disinfection

Upper Shoe Cleaning

Category:

Description

One For All Purposes

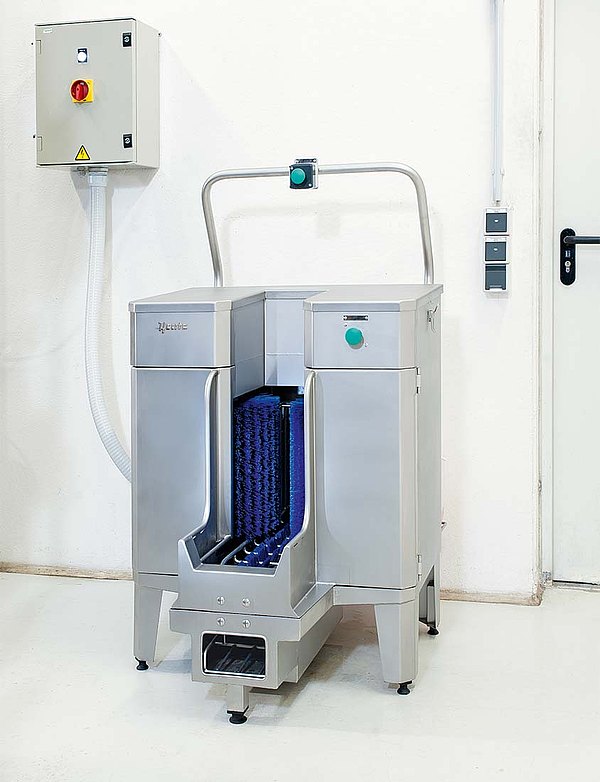

Whether a single sole or a whole boot, the universal machine Neptun BC1 (Boot Cleaner 1) is the solution to all dirt problems. With its well thought out and functional design it is possible to wash efficiently and quickly the sole, uppers and bootlegs of work boots and shoes, separately from each other. Thus, the Neptun BC1 combines the functions of several machines in one device.

For pure sole cleaning on clogs and work shoes, the lower roller brush can be started and operated individually. Therefore, Neptun BC1 adapts to the needs of each user.





The two vertical roller nylon brushes clean the bootlegs intensively. While the lower horizontal brush provides for perfect finish of the sole. For pure sole cleaning on clogs and low shoes, the lower revolving brush can also be started and operated individually.
Therefore, the Neptun BC1 adapts to the needs of each user. Dirt on the upper shoe can be easily washed off thanks to the practical EasyClean function. There is a separate cleaning opening underneath the revolving brush. A quick release permits complete swing-up the stainless steel front section.
Enabling fast and easy cleaning of the machine. The switch cabinet is hung directly behind the Neptun BC1 and thus, located outside of the wet and dirt area.

The control cabinet should be mounted on the wall, directly behind Neptun BC1. It is thereby outside of the wet and dirty area.




Easy cleaning of the upper shoe


Roller brushes made from nylon


Easy to open for cleaning purposes


Bracket for cleaning detergent



























Advantages of Neptun BC1:

  • For very dirty shoes and boots
  • Individually controllable brushes
  • Robust nylon brushes
  • EasyClean function
  • Completely made of V2A stainless steel
  • Fast and easy cleaning of the machine



Technical Data

Technical Overview

Neptun BC1

Dimensions (W x L x H) 770 x 870 x 1220 mm
Weight 140 kg
Design V2A 1.4301 (X5CrNi18-10), AISI 304
Brushes 2 vertical brushes (boot sides) 1 horizontal brush (sole and upper side)
Water pressure recommended 3 bar
Water temperature 5 – 50 °C
Water flow rate 5 l/min
Mains connection 400 Volt, 0,18 kW, 50 Hz*
Control Switch cabinet for wall mounting
IP protection class IP 55

*Special motor on request
